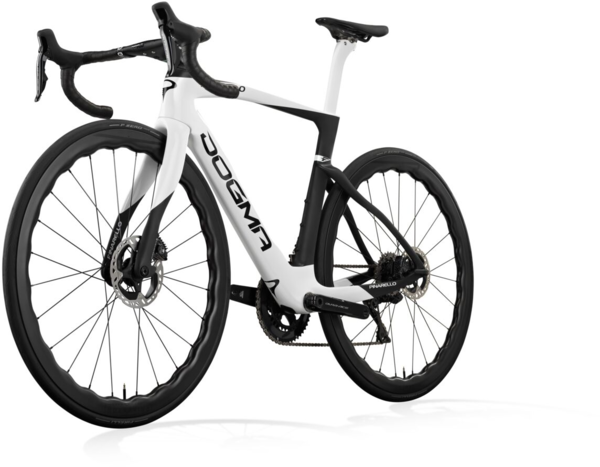

Pinarello Dogma F Disc - Sram Red - Princeton Grit 4540 Wheels

Pinarello Dogma F Disc - Sram Red - Princeton Grit 4540 Wheels
  • Color: Summit White
$11,000.00
$14,500.00
Color: Summit White
Size: 57.5cm
Please select options Unavailable
Order now and pick up in-store for free

Details

THE ART OF BALANCE.

This is the culmination of all of our skill and experience, a masterpiece of engineering that offers advancements in handling, comfort, and aerodynamics all wrapped in a package that can climb, descend, and sprint with equal flair. Whatever the road throws at you, the DOGMA F is always the right bike. COLOR REFERENCE ONLY

CARBON
T1100 1K
High tensile and high modulus carbon fiber with patented Nanoalloy Technology for extreme performances.

TiCR
The state-of-the-art internal cable routing across the whole bike industry. The system allows both to install wireless or electro-mechanical group sets and completely hides cables within bar/stem or integrated handlebar for improved aero performances and cable protection.

FLATBACK
PROFILE
Truncated aerofoil for aerodynamic advantage, compliant with 3:1 UCI rule. Excellent aero performance and low lateral wind resistance

Geometry

CE: SEAT TUBE CENTER - END, CC: SEAT TUBE CENTER - CENTER, L: TOP TUBE CENTER - CENTER, A[°]: SEAT TUBE ANGLE, B[°]: HEADTUBE ANGLE, P: CHAINSTAY, T: HEADTUBE, D: BB DROP, R: FORK RAKE , G: FORK HEIGHT, REACH, STACK

CECCLA [°]B [°]PTDRGReachStack
425 430 500 74.4 69.5 406 97 67 43 373 351.4 502.4
450 465 515 74.4 70.5 406 104 72 43 373 364.8 517.6
465 500 525 74 71.4 406 109 72 43 373 372.1 525.4
485 515 535 73.7 72 406 114 72 43 373 378 532.3
500 530 545 73.7 72.5 406 123 72 43 373 383.3 542.6
510 540 550 73.4 72.8 408 131 72 43 373 385 551.2
520 550 557 73.4 72.8 408 142 72 43 373 388.8 561.6
525 560 565 73 73.2 408 149.5 72 43 373 390.7 570.2
540 575 575 73 73.7 408 163 72 43 373 396.7 584.8
560 595 587 72.4 73.4 408 199 67 43 373 393.3 613.3
600 620 620 72 73.4 411 239 67 43 373 410.1 651.7

Specs

Frame TorayCa T1100 1K Dream Carbon with Nanoalloy technology, TiCR™ cable routing, Italian BB, UCI approved
Fork F Onda Fork with ForkFlap™, 1.5' upper and lower steerer, Ultra Light Headset bearings
Wheels Princeton Grit 4540 DB
Tires Pirelli P ZERO Race 26mm
Bottom Bracket Sram Red
Crankset Sram Red
Shifters Sram Red
Front Derailleur Sram Red
Rear Derailleur Sram Red
Cassette/Freewheel Sram Red
Chain Sram Red
Brakes Sram Red
Handlebars Talon Ultra Light
Tape/Grips MOST Ultragrip Evo 3mm - Black
Seatpost Carbon Aero Seat Post
Saddle Lynx Ultrafast Superflow Carbon

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Summit White / 57.5cm 607498005007 PB-23-FDSC-57-SW-D45 210000016948
