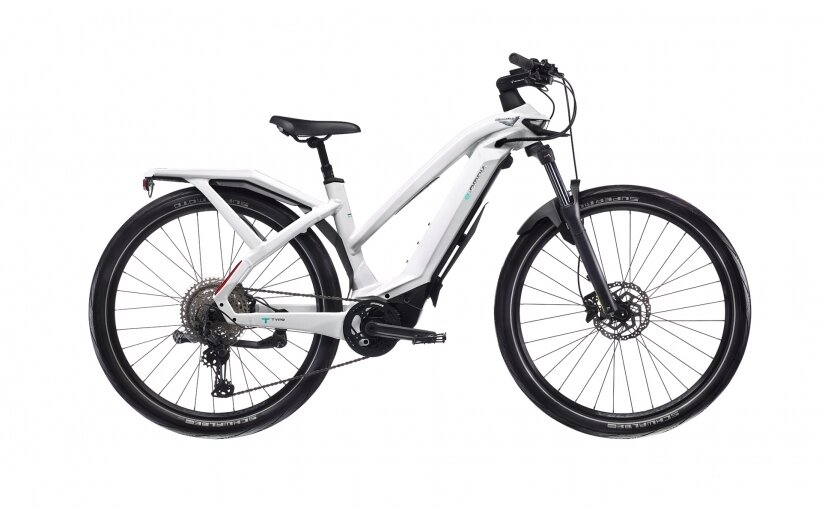

Bianchi e-Omnia T Type Mid-Step

Bianchi e-Omnia T Type Mid-Step
Please select options
Sorry, this item is currently not available. Please check back.

Details

The E-Omnia T Type is a utilitarian e-bike designed to be the first choice for fitness, commuting, or just riding for pleasure. With front suspension and some intelligent design features, it can handle anything from smooth asphalt to light gravel.

DESIGNED FOR
A sporty person who uses a versatile bike to move around the city and fitness workouts and tourism during the weekend.

KEY FEATURES:
- 500WH battery
- 85Nm: Torque
- Hardtail aluminum Tourer frame.
- Gravity casting aluminum tubes
- Integrated front (40lux), rear and side led lights. Visibility range of 100 meters, and visibility to others at 500 meters.
- Bianchi custom mudguard or full mudguards
- Integrated seat clamp
- Tourer configuration with frame integrated rear carrier, chainguard, and side kickstand
- Belt drivetrain option
- Front-wheel ABS option

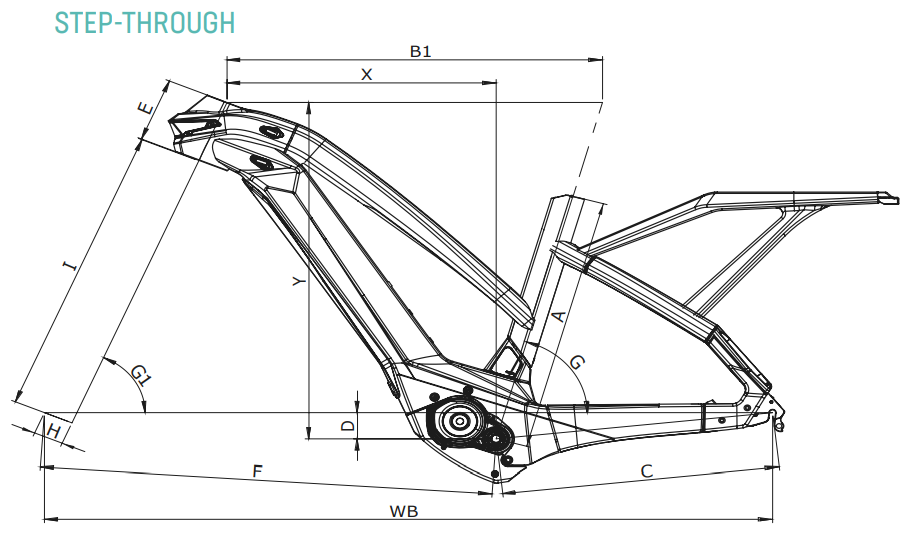

Geometry

Geometry Chart:
MediumLargeX-Large
A (mm) 440 480 520
B1 (mm) 607 628 649
C (mm) 465 465 465
D (mm) 50 50 50
E (mm) 116 121 126
F (mm) 732 753 775
G 74.5° 74.5° 74.5°
G1 67° 67° 67°
H (mm) 47 47 47
I (mm) 541 541 541
X (mm) 430 450 470
Y (mm) 637 641 646
WB (mm) 1192 1214 1236

Specs

Frame e-Omnia T Type Step Thru ALU, sizes: MD, LG, XL (43,48,53), 12x148mm Thru-axle, chainguard, Post mount 160 disc brake type, kickstand, custom rear carrier integrated in the frame design, BatteryWall Bosch OmniaX/T/FX, Set dropout (sx+dx) TA 148mm external derailleur, Apro Set Hanger UHD compatible
Fork Suntour XCM34-Boost NLO DS 15AH2-110 29" travel 120mm
Rims VELOMANN EBIKE MAXX 29" - 622X25C
Hubs SHIMANO FH-MT410-B FOR CENTER LOCK, 12X148MM BOOST, 12SP SHIMANO MICROSPLINE BODY
Tires SCHWALBE SUPERMOTO 29X2.4 62-622
Bottom Bracket Included w/motor unit
Crankset FSA ALLOY CRANK, CRANK LENGTH: 170MM, ISIS BB AXLE, W/FSA MEGATOOTH 38T CHAINRING
Shifters Shimano SL-M6100-R, DEORE, 12sp
Rear Derailleur Shimano XT RD-M8100-SGS Shadow Design + 12sp
Cassette/Freewheel SHIMANO DEORE CS-M6100-12, 10-51T
Chain Shimano CN-M6100, Deore 12sp
Brakes Shimano BR-MT401
Rotors Shimano SM-RT10, diam. 180mm
Handlebars VELOMANN DIAM. 31.8MM, WIDTH: 680MM, RISE 20MM, BACKSWEEP 15°
Tape/Grips HERRMANS LUNA LOCK
Stem Velomann 35,3D FORGED 0°>90° L70MM
Headset Fsa NO.55R/558 1.5"
Seatpost VELOMANN, W/SUSPENSON, DIAM.31.6MM, LENGTH 350MM
Saddle VELOMANN A037DR0 , STEEL RAIL, 270X200MM
Pedals Sold separately
Accessories & Extras BIANCHI CUSTOM MUDGUARDS, KICKSTAND: VELOMANN R78 KING EVO REAR MAX 35KG, REARCARRIER, INTEGRATED CUSTOM FRONT AND SIDE LIGHT MADE W/SPANNINGA, REARLIGHT: Spanninga integrated rear lights
Motor BOSCH PERFORMANCE LINE CX 250W 85NM
Battery BOSCH POWERTUBE 500WH

* Subject to change without notice.
