Bianchi e-Omnia T Type
Details
The E-Omnia T Type is a utilitarian e-bike designed to be the first choice for fitness, commuting, or just riding for pleasure. With front suspension and some intelligent design features, it can handle anything from smooth asphalt to light gravel.
DESIGNED FOR
A sporty person who uses a versatile bike to move around the city and fitness workouts and tourism during the weekend.
KEY FEATURES:
- 500WH | 625WH: or dual battery
- 85Nm: Torque
- Hardtail aluminum Tourer frame.
- Gravity casting aluminum tubes
- Integrated front (40lux), rear and side led lights. Visibility range of 100 meters, and visibility to others at 500 meters.
- Bianchi custom mudguard or full mudguards
- Integrated seat clamp
- Tourer configuration with frame integrated rear carrier, chainguard, and side kickstand
- Belt drivetrain option
- Front-wheel ABS option

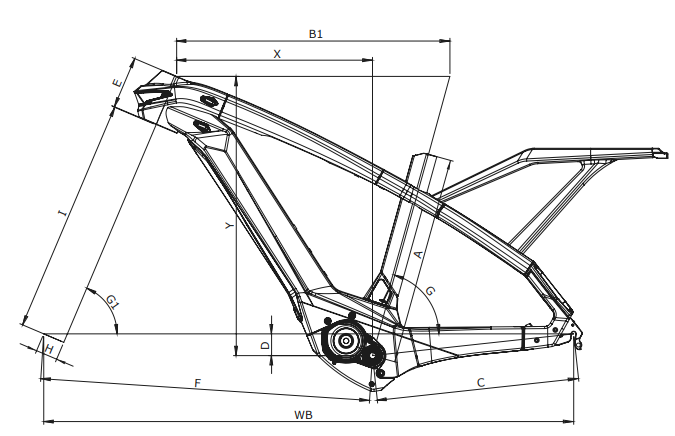

Medium | Large | X-Large | |
---|---|---|---|
A (mm) | 440 | 480 | 520 |
B1 (mm) | 607 | 628 | 649 |
C (mm) | 465 | 465 | 465 |
D (mm) | 50 | 50 | 50 |
E (mm) | 116 | 121 | 126 |
F (mm) | 732 | 753 | 775 |
G | 74.5° | 74.5° | 74.5° |
G1 | 67° | 67° | 67° |
H (mm) | 47 | 47 | 47 |
I (mm) | 541 | 541 | 541 |
X (mm) | 430 | 450 | 470 |
Y (mm) | 637 | 641 | 646 |
WB (mm) | 1192 | 1214 | 1236 |
Specs
Frame | e-Omnia T Type ALU, sizes: MD, LG, XL (43,48,53), 12x148mm Thru-axle, chainguard, Post mount 160 disc brake type, kickstand, custom rear carrier integrated in the frame design, BatteryWall Bosch OmniaX/T/FX, Set dropout (sx+dx) TA 148mm external derailleur, Apro Set Hanger UHD compatible |
---|---|
Fork | Suntour XCM34-Boost NLO DS 15AH2-110 29" travel 120mm |
Rims | VELOMANN EBIKE MAXX 29" - 622X25C |
Hubs | SHIMANO FH-MT410-B FOR CENTER LOCK, 12X148MM BOOST, 12SP SHIMANO MICROSPLINE BODY |
Tires | SCHWALBE SUPERMOTO 29X2.4 62-622 |
Bottom Bracket | Included w/motor unit |
Crankset | FSA ALLOY CRANK, CRANK LENGTH: 170MM, ISIS BB AXLE, W/FSA MEGATOOTH 38T CHAINRING |
Shifters | Shimano SL-M6100-R, DEORE, 12sp |
Rear Derailleur | Shimano XT RD-M8100-SGS Shadow Design + 12sp |
Cassette/Freewheel | SHIMANO DEORE CS-M6100-12, 10-51T |
Chain | Shimano CN-M6100, Deore 12sp |
Brakes | Shimano BL-MT401 |
Handlebars | VELOMANN DIAM. 31.8MM, WIDTH: 680MM, RISE 20MM, BACKSWEEP 15° |
Tape/Grips | HERRMANS LUNA LOCK |
Stem | Velomann 35,3D FORGED 0°>90° L70MM |
Headset | Fsa NO.55R/558 1.5" |
Seatpost | VELOMANN, W/SUSPENSON, DIAM.31.6MM, LENGTH 350MM |
Saddle | Velomann A037HR0 , black steel rail, no clamp, 285x187mm |
Pedals | Sold separately |
Accessories & Extras | BIANCHI CUSTOM MUDGUARDS, KICKSTAND: VELOMANN R78 KING EVO REAR MAX 35KG, REARCARRIER, INTEGRATED CUSTOM FRONT AND SIDE LIGHT MADE W/SPANNINGA, REARLIGHT: Spanninga integrated rear lights |
Motor | BOSCH PERFORMANCE LINE CX 250W 85NM |
Battery | BOSCH POWERTUBE 625WH |
* Subject to change without notice.
